　Prefabricated Housr / Hotel / Machine

√

- Prefabricated House - Prefabricated Hotel - Wall Panel Making Machine
USD 520 /㎡ USD 520 /㎡



- Wall Panel Making Machine

　　　　Configuration List：

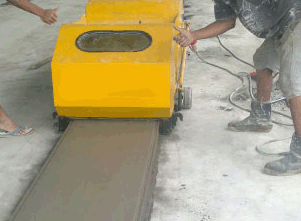

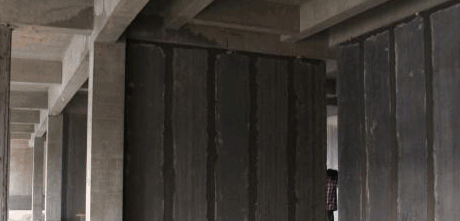

1.The lightweight hollow core wall panel can put 2 layers steel tendon, the diameter of the steel tendon can reach 5mm.

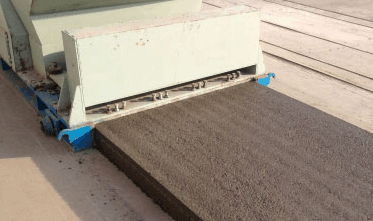

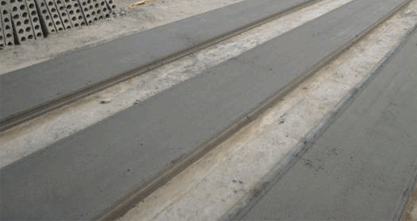

2.The producing table can use steel plate of concrete plate, convenient construction.

3.The easywear spareparts such as tubes and the sides die plate using alloy, greatly improved the antifraying ability.

4.The machine can use different kinds of light-weight materials, for instance, slag(cinder), ceramsite(haycite), pearlstone etc.to produce, the product with smooth surface & light-weight.



  Machine list
  Item   Parameters

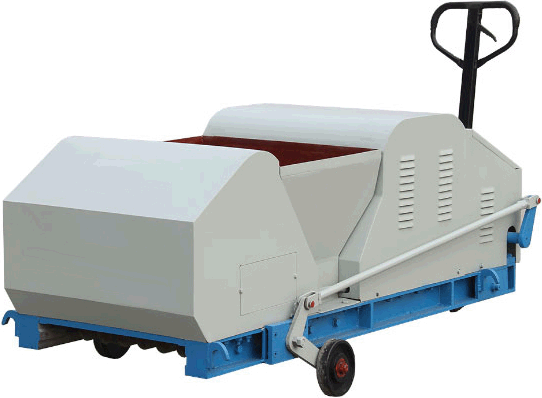

■ Wall Panel Extruder Making Machine
1 Wall panel making machine Thickness of slab：90mm
Width of slab：600mm
Dimension of machinery：2470*950*680mm
Weight of machine：1030kg
Mould speed ≧1.4m/min
Capacity ≧400m2/8h
Number of holes：7
Motor：5.5kw
Vibrator：0.8kw
■ Supporting Equipments
2 Cutting machine Rotary speed：2900r/min
Cut depth：120mm
Cut length：600mm
Saw blade：400mm
Dimension of machinery：1600*900*1000mm
Weight of machine：125kg
3 Saw blade Diameter：400mm
Diamond cutting head for 120-600 Cutter
4 Tensioning machine Rated jacking force：1200kgs
Jacking speed：1.5m/min
Overall size：700*552*852mm
Weight：120kgs
Power：1.1kw
5 Clips For normal wires
It can be used for one time
6 Feeding dumper Load capacity：0.3m3
Electric 5 pieces battery
Hydraulic lifting system
Overall size：2500*1500*1200
Weight：1000kgs
Main motor power：1.26kw
Side motor power ：0.9kw
7 Wall panel lifting As picture shows that
8 Panel transport vehicle Overall size：3000*1500*1200
Weight：1000kgs
It can transport 6 pieces slab at one time
■ Concrete Mixing Plant and Forklift

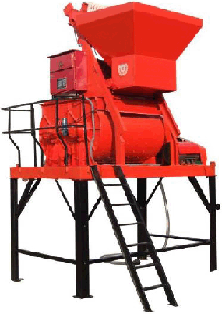

9 Concrete mixer Output capacity：500L
Feeding capacity：800L
Productivity ≥ 255m3/h
Hoisting speed of hopper：18m/min
Max grain diameter of aggregate：80/60mm
Overall size：3050*2300*2680mm
Weight：4000kgs
Power Mix motor：18.5kw
Power hoisting motor：5.5kw
Power pump motor：0.75kw
Bucket lifting speed：18m/min
10 Batching plant Weighting hopper capacity：800L
Storage hopper capacity：1.5m3*2
Productivity：48m3/h
Quality of ingredient：2
Overall size：5600×1830×2700mm
weight：2500kgs
Batching precision：±1%
Max weighting scale：2000kg
Feeding height：2400mm
Belt Speed：1m/s
Motor Power：3*2.2=6.6kw
11 Forklift As picture shows that.
It can lift wall panels less than 750kg by it
